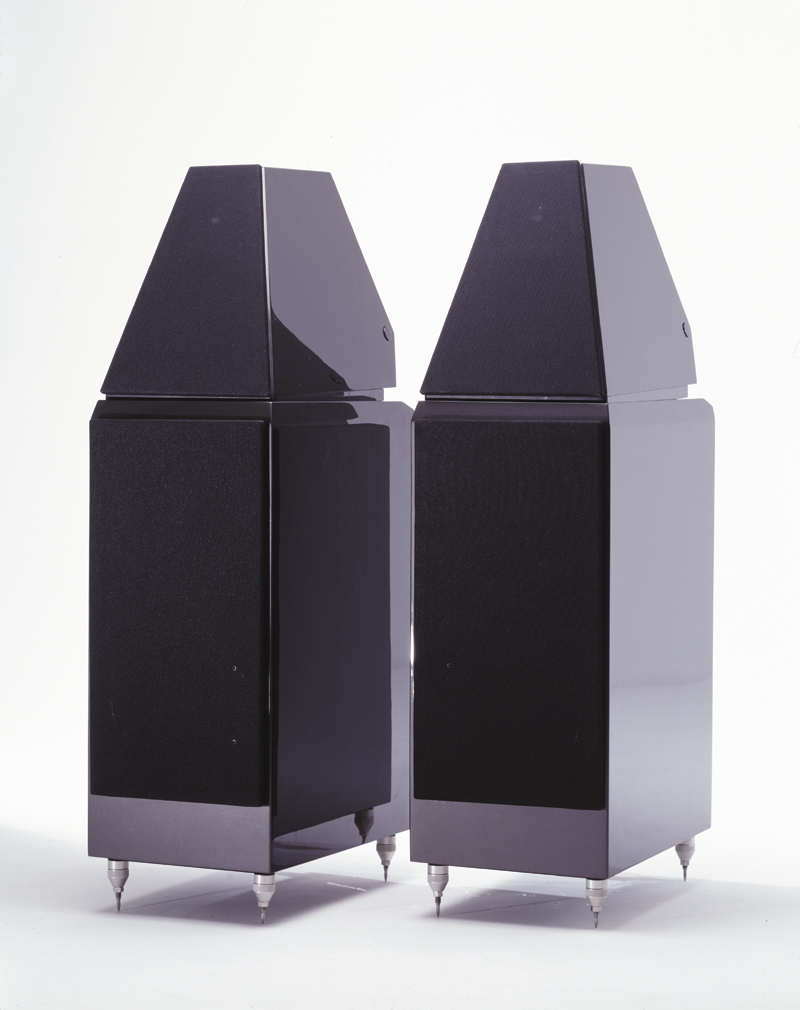

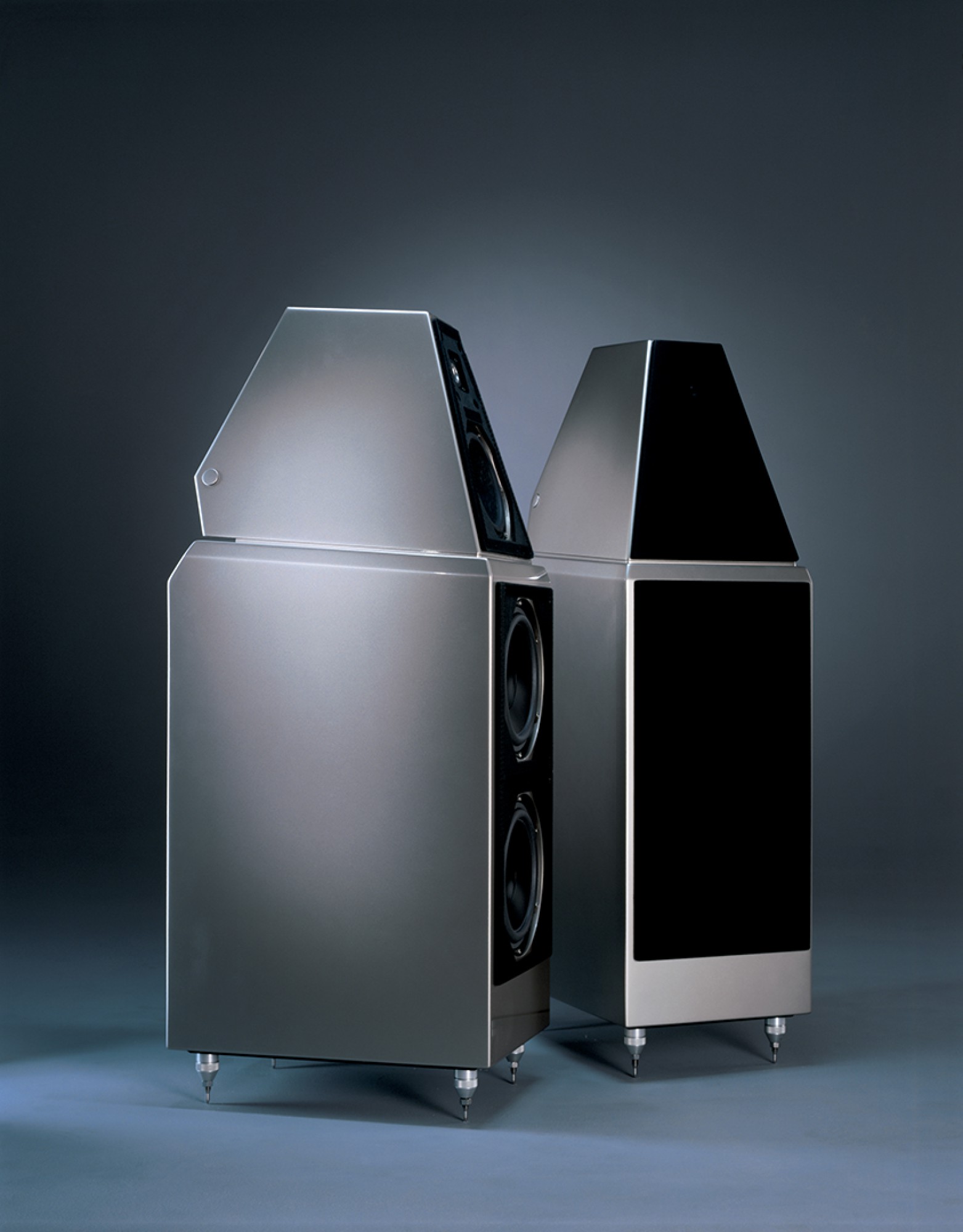

The WATT (Wilson Audio Tiny Tot) precision loudspeaker system was designed and developed by David A. Wilson to serve as a highly accurate yet portable professional monitor for on-location recording work. Microphone pattern selection and placement as well as master tape evaluations may be quickly and correctly performed using the WATT. The extraordinary transparency, coherence, and dynamic linearity of the WATT also make it ideal for the sonic evaluation of audio hardware and software, including associated electronic audio equipment, such as, amplification systems, D/A converters, passive circuit components, signal cables, solders, and contact treatments. Its capabilities of high resolution, accurate tonal and harmonic integrity, and unsurpassed sound-stage recreation make it an ideal system for the most demanding music lovers.


The Original Puppy high speed woofer was introduced as a solution to solve the unpredictable results of pairing the WATT with other commercial subwoofers for those who wanted lower frequency extension.

In the initial design phase of the Puppy, Wilson concluded that what was needed was a higly articulate, low distortion, non-resonant, compact high-speed subwoofer with robust power handling, high sensitivity and excellent reliability. In ever series of puppy, two very high quality low-frequency drivers are driven in parallel in a rigidly cross-braced, tuned enclosure to quickly dampen spurious resonances in the structure.

Awards

Best Sound at Show
1999
The Best of the Best
2000
High End Product of the Year
2000
Reviewers' Choice: Edge of the Art
2000
Best Speaker
2001
High End Product of the Year
2001

Reviews

Wilson Audio Specialties WATT/Puppy 6 Loudspeakers
Sound Stage 12/01/2000
Wilson Audio's Watt / Puppy Speaker System, Version Six
The Stereo Times 03/06/2000

WATT / Puppy Series 6 Technical Specifications

Released: 1999
Retired: 2004

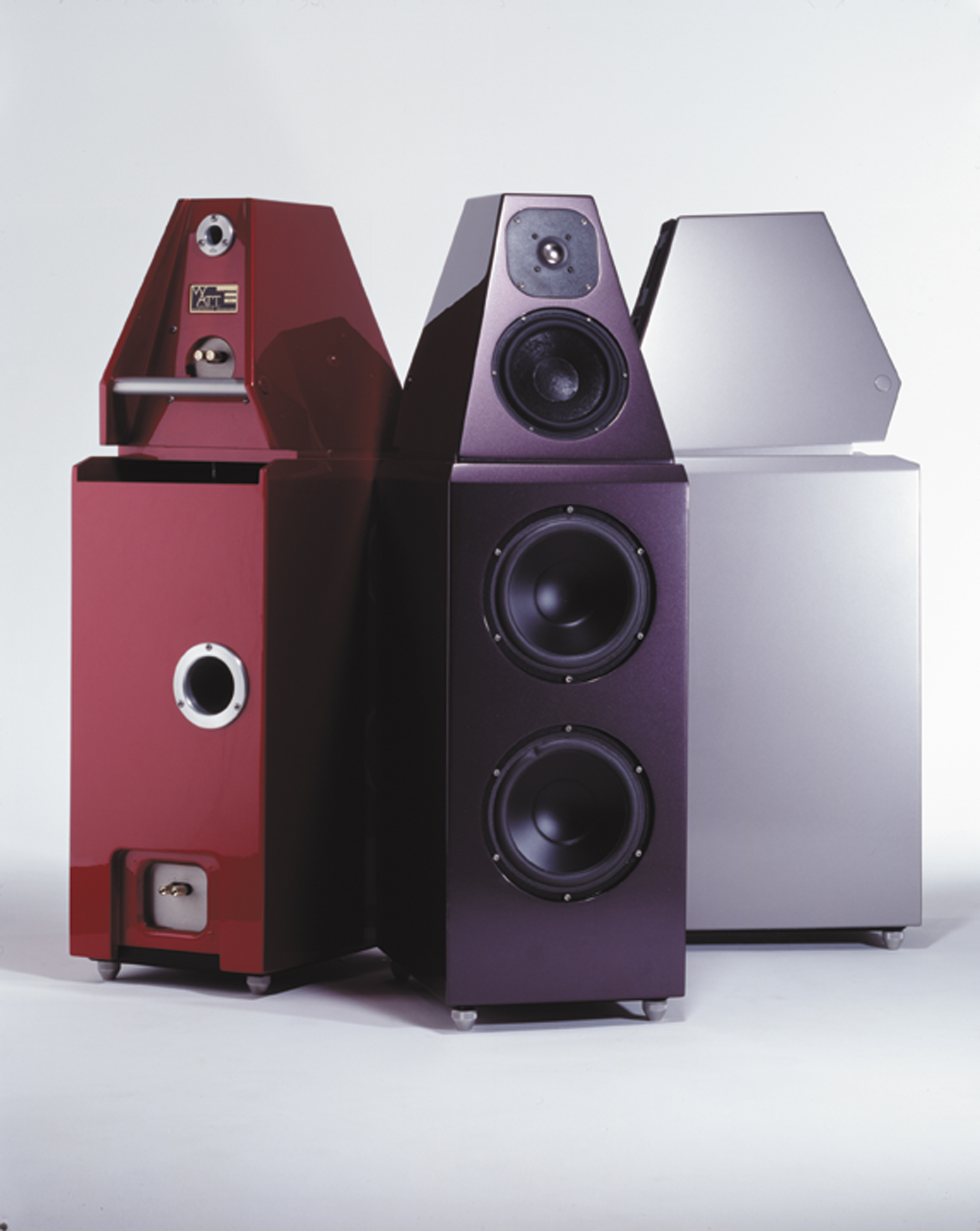

Drivers

Tweeter
1 - 1 inch Titanium Inverted Dome
Midrange
1 - 7 inch
Woofer
2 - 8 inch

Enclosures & Materials

Mineral-Filled Acrylic with X-Material Bottom

Measurements

Impedance
4 ohms nominal
Frequency Response
21 Hz - 21 kHz (-3 dB)
Sensitivity
92 dB (1 watt @ 1 meter)
Minimum Amplification
7 Watts Per Channel

Overall Dimensions

Overall Dimensions
Height
40 inches
Width
12 inches
Depth
18 1/2 inches
WP System Weight
324 lbs.
WP System Shipping Weight
410 lbs.
System Weight Per Channel
65 lbs.
